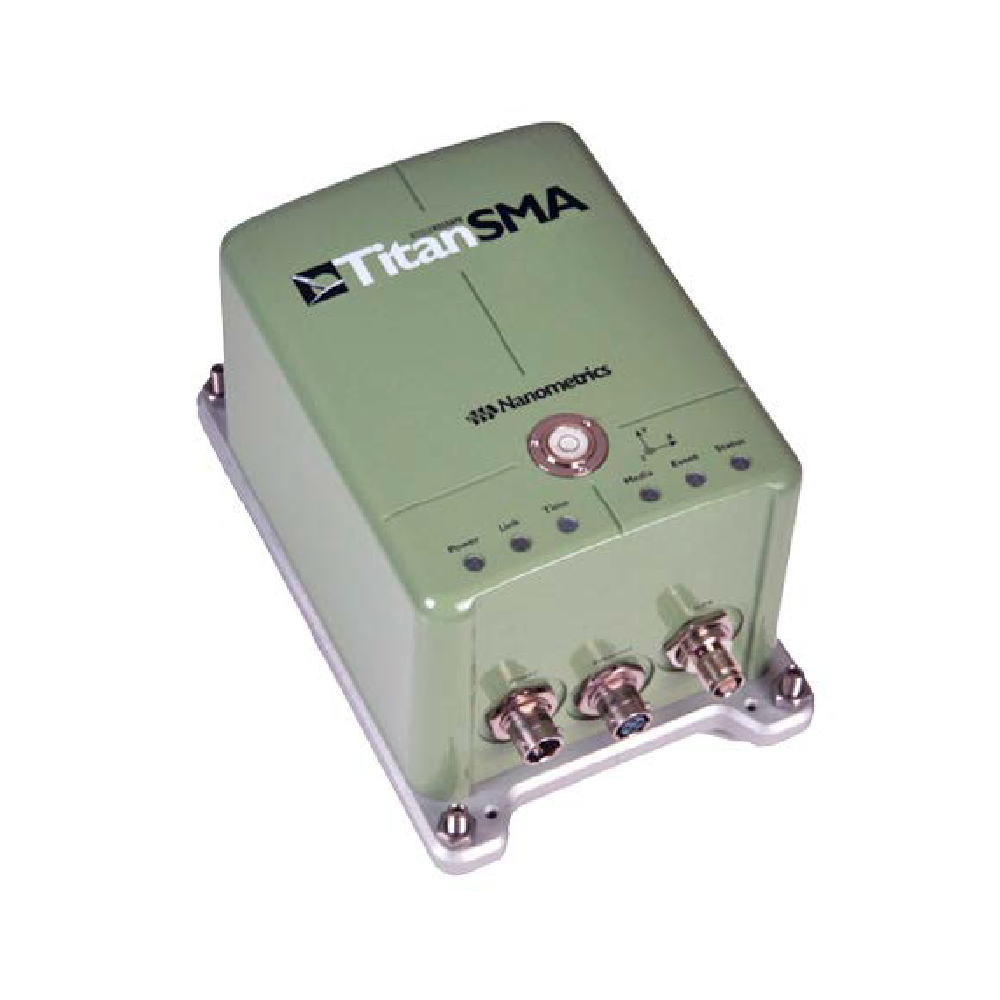

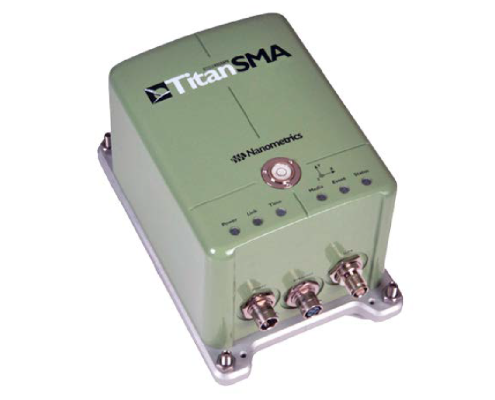

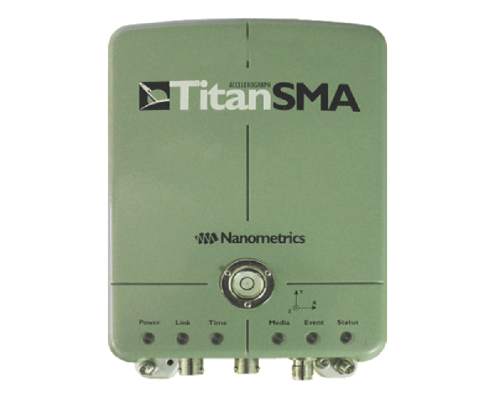

TitanSMA強震儀
▎Product:TitanSMA強震儀
▎Features:
- Convenient data retrieval via removable SD card or local Ethernet in MiniSEED or ASCII formats
- Continual streaming of data to a central server or retrieved on demand from the central site
- HTTP data communications, which requires only Internet website access from within the host IT network to stream continuous or event data
- Instrument configuration/control via browser interface with Ethernet connection
- LED indicators that provide quick visual instrument status
- GNSS, PTP or NTP timing
- Full digitizer/ sensor response metadata files generated on-demand
- Full scale range of ±0.25 g to ±4 g with independent horizontal and vertical range selection
- Channels: 3 internal X,Y, Z axes
- Type: 24 bit successive approximations
- Digital Filter: 140 db attenuation at output Nyquist
- Dynamic Range: >138 db@100sps (max sine wave above shorted input)
- Filter Type: Linear phase (contact us for other options)
- Sample Rates: 10,20,40,50,80,100,200,250,500,1000 sps
- Dual Sample Rate: Decimate primary rate by factor 2,5,10,20,50,100,200,250
- Sensitivity: 2,4,8,16,32 and 64 digitizer counts per ug, +/-1%
